Buying a Whole-House Fan

Expert, unbiased advice on how to buy a whole-house fan, including options, sizing, when and how to use them, and manufacturers.

Are you tired of soaring electrical bills and having to run your air conditioner day and night in summer? Have you developed allergies, likely brought on by stale, non-ventilated, “shut-in” air? If so, you might consider installing a whole-house fan. This can provide much needed ventilation and cool your home using far less energy than that consumed by an air conditioner.

According to the U.S. Department of Energy, whole house fans are a simple and inexpensive method of cooling a house. They provide excellent ventilation, lower indoor temperatures, and improve evaporative cooling. The cost for a whole house fan is $150 to $350 versus the cost for central air conditioning, which runs $2,000 to $4,000 or more. In addition, whole house fans use one-quarter the power of central air conditioning.

The word “ventilation” comes from the Latin word for “to fan.” In the case of houses, this means out with the hot air and in with the cool.

The attic is the target location for a whole house fan because hot air rises, and, especially during summer, attic temperatures can reach 130 degrees F. Because the attic is not only at the top of your home but mostly enclosed, the hot air gets trapped in the attic, causing the interior of the house to heat up.

A whole house fan goes in the ceiling between a home’s uppermost rooms and the attic. It pulls cool outdoor air through open windows and doors and circulates it throughout the house. The warmer air in the house is drawn up into the attic where it is then pushed outside through roof vents. The attic fan is far more effective at expelling the hot attic air than passive attic vents working on their own.

Whole house fans cool the entire house using outside air instead of “conditioning” inside air. The truly “cool” part about them is that they keep air moving through a home, and moving air feels cooler than still air.

Whole House Fans vs. Attic Fans

What is the difference between a whole house fan and an attic fan? Whole house fans suck out hot air from the house, force it into the attic, and then exchange it with cooler outside air via vents. Attic fans only serve to remove some hot air from the attic. They are still effective, however—they can save you 30% on cooling costs by getting rid of trapped super-hot air that collects in the attic and then backs up into the house’s living spaces.

Attic fans can lower upstairs temperatures by 10 degrees F., lengthen roof life by keeping shingles cooler, and, with an added optional humidistat, keep attics dry during winter months

Use of an attic fan is easy because it goes on or off automatically via a thermostat. The attic fan only runs when it is beneficial.

Look for these three things in an attic fan:

1) All metal construction—do not buy a fan made of plastic

2) A quality thermostat because you do not want to have to crawl into your attic to manually turn the fan on and off.

3) A fire stat, which shuts the attic fan off under extremely high temperatures, such as if your home is on fire.

Attic fans come in rooftop and gable-end models and can be powered by electricity or by solar energy.

Whole House Fans Options

If you’re considering a whole house fan to complement your air conditioner, or to take the place of your AC, you first must evaluate your needs. The following guidelines will help:

Go into your attic to see what you have to work with. A sign of poor ventilation is an unbearably hot attic in summer. Check for moisture, evident from any mold, mildew, rusted nailheads, damp or compressed insulation, or wood rot.

Also look for vents. There are gable vents, roof louvers, intake vents, and soffit and eave vents. Note the size and location of each. Finally, estimate the attic’s square footage. According to most building codes, you need 1 square foot of vent area for each 150 square feet of attic floor space. Do not underestimate your ventilation needs. Building codes specify minimums; you may want to increase those to ensure proper ventilation.

Make sure to have a balance of intake and exhaust avenues to properly ventilate your home. In the attic, remember that the flow of air is limited by the amount of intake. If a ventilation system is balanced, half of it will be provided by exhaust vents in the upper portion of your attic, with the other half provided by intake vents.

Call your utility company. Many offer rebates for whole house fan installation. Also explore whether any state or federal tax credits are available. Many companies offer 10-year warranties. Make sure you inquire before making a purchase.

Traditional whole house fans tended to be noisy, consume more energy, require maintenance (belt-driven ones need the belts changed periodically), and were not well insulated. The newer whole house fans are well engineered to take care of these problems in multiple ways. Look for:

• The number of blades—the more blades, the quieter the fan will be because each blade has to do less work. Have the fan isolated from your home’s framing with foam strips or rubber mountings. That way the motor hum will not resound through the framing and drywall. Also make sure your unit has a welded frame so it will not loosen up and begin to squeak.

• Quality shutters—the better the quality, the less thumping noises will occur when the unit shuts off. The latest fans have self-sealing insulated shutters that close when the fan is not operating, which prevents heat from escaping when the unit is not in use.

• A timer—recommended over a thermostat, which could turn the fan on when no one is home (i.e., no windows or doors are open), or a fire in the fireplace could trigger the fan to go on.

Ideally, look for a larger fan that will run well at a lower speed, thereby using less energy. A heavier unit is also recommended because it rests on foam weatherstripping, held down only by its own weight.

Whole house fans are generally easy to install. Direct-drive models are the most do-it-yourself friendly since no attic joists need to be cut. Belt-drive whole house fans use an integrated pulley system, which takes longer to install, but a belt-drive unit provides for a smoother and quieter operation.

Sizing a Whole House Fan

When selecting a whole house ventilation fan system, an important factor to consider is what size it should be. Whole house fans are rated according to the cubic feet per minute (CFM) of air they can move. So, the bigger your house, the bigger the fan it will need.

If your home has standard 8-foot-high ceilings, just multiply the home’s overall square footage by 3 to calculate the right size of fan for the house in CFMs. For example, if your home is 2,000 square feet, figure 2,000 x 3 = 6,000. If some of your ceilings are higher than 8 feet, buy a slightly larger one.

For a 2,300-square-foot house, the recommended size of a belt-drive unit is 36 inches (which will cover 6,900 CFM). Both belt-drive and direct-drive units for a 1,900-square-foot house require a 30-inch unit and will cover 5,700 CFM. For a 1,500-square-foot house, the direct- drive 24-inch unit, which covers 4,500 CFM, is recommended.

If you choose a high-speed fan, you need to make sure there’s enough venting for it. A good rule of thumb is 1 square foot of venting area for every 750 CFM. Another way to look at it is, provide the same amount of venting as the size of the shutter hole in the ceiling.

When & How to Use a Whole House Fan

For optimal effectiveness, use your whole house fan in the late afternoons, evenings, and/or early mornings when the outside temperatures are cooler than inside temperatures.

Here are a few basic tips for using a whole-house fan:

• Turn off the central air conditioning when using a whole house fan. Otherwise, you will expel all of that expensively cooled air in your home!

• Open the windows and doors. If you do not, the fan may cause your gas-burning appliances, furnace, or water heater to backdraft exhaust fumes and carbon monoxide into your home.

• Do not have a fire going in the fireplace. A fire will not vent properly because of the change of air pressure that a whole house fan causes.

There are also some drawbacks to whole house fans:

• They can only cool the inside of the house to the outside temperature, so if it is hot outside, it will be just as hot inside, except for the coolness offered by air movement.

• Unlike an air conditioner, a whole house fan cannot dehumidify the air.

• A whole house fan can draw dust and pollen into the house.

• In winter months, whole house fans could present energy loss as heated room air leaks into the attic. A shutter or cover can minimize this problem.

Whole House Fan Manufacturers

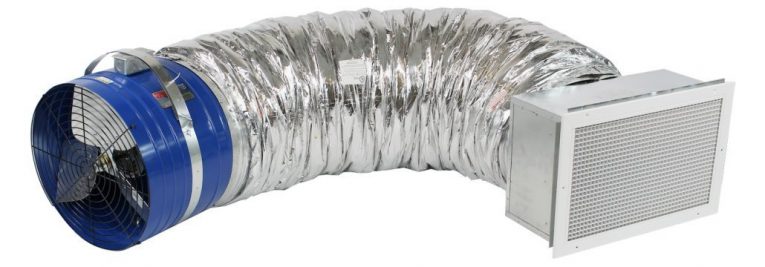

West Connection Entertprises’ Quiet Cool System is a multifan, multilocation system that moves 1,500 CFM of air per fan. It is easy to install and has insulated self-closing damper doors to prevent unwanted air loss.

Quiet Cool fans are installed in a hanging position from the attic rafters, which puts the fans as far away from your living space as possible to reduce noise.

They can have multiple on/off switches if you want one fan to run in one part of the house but not in another part. The Quiet Cool has no motorized doors or belts to replace, and the fan blades are not plastic. It comes with a 10-year warranty and costs $1,350.

R.E. Williams offers three types of whole house fans, with an estimated air exchange of five minutes for a 1,500-square-foot home and a 10-minute air exchange for homes of 3,000 square feet:

1) The HV1000 whole house fan requires no maintenance and has an R-22 insulated door, which, when not in use, forms an airtight seal between your attic and living space. This basic fan costs $550.

2) The “Ghost” (shown above right) is a two-speed whole house fan with a remote on/off switch. This is an easily installed and energy-efficient large-diameter fan that closes and seals when not in use. It comes with a three-year warranty and costs $1,250.

3) The “Superfan” (shown at right) is an energy-efficient whole house fan that does not require any maintenance. It has one central unit with a German-made fan motor known as a backward curved impeller motor, designed to pull large amounts of air through the air ducts quietly.

It also has an on/off switch and a wireless remote control option. The Superfan is rated for all homes up to 3,000 square feet, though it is not recommended for homes in very cold climates. The cost is $1,550, with installation estimated at between $400 and $500.

Find a Pre-Screened Local Whole-House Fan Installation Contractor

About Don Vandervort
Author Image
Don Vandervort developed his expertise more than 30 years ago as Building Editor for both Sunset Books and Home Magazine. He has written more than 30 home improvement books and countless magazine articles. He appeared regularly on HGTV’s “The Fix,” and served as MSN’s home expert. Don founded HomeTips in 1996.

Related Posts:

Join the Conversation

1 Comment

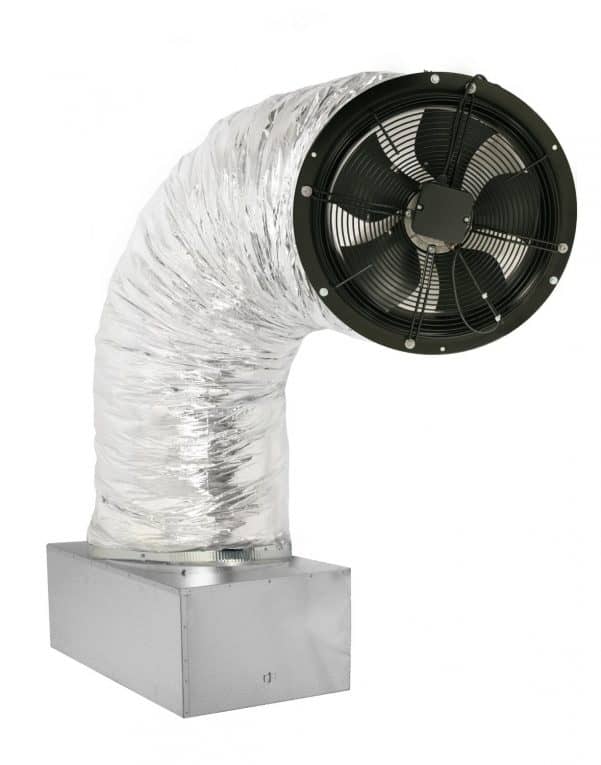

  1. We recently purchased an ultra quiet ducted whole house fan from Centric Air and hired an electrician to install it. When the electrician finished the job he said it was the easiest whole house fan he has ever installed.
